PPTC021LFBN-RC
Manufacturer:
Sullins Connector Solutions
Mfr.Part #:
PPTC021LFBN-RC
Datasheet:
Description:

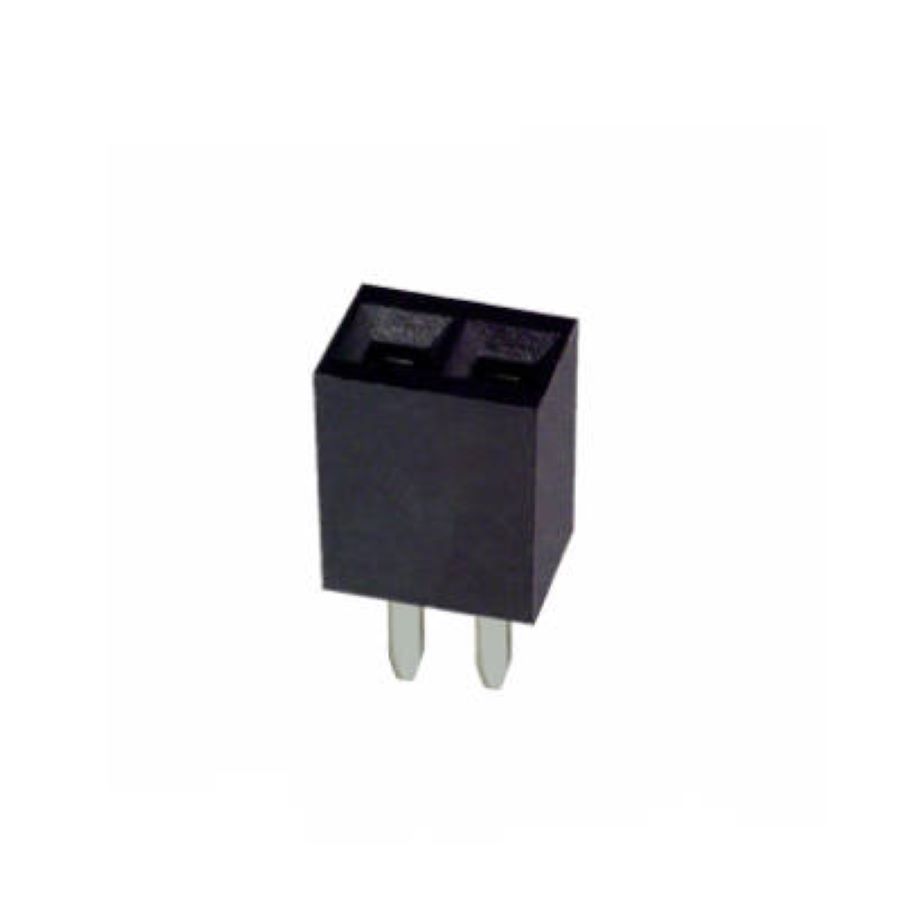

Headers and Wire Housings Through Hole Header, Socket Number of Positions:2 Pitch:2.54 mm
| Parameter | Value |
|---|---|
| Length | 5.58 mm |
| Width | 2.5 mm |
| Termination | Solder |
| Max Operating Temperature | 105 °C |
| Min Operating Temperature | -40 °C |
| Height | 8.5 mm |
| Packaging | Bulk |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Color | Black |
| Gender | Female |
| Connector Type | Header, Socket |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Housing Material | Plastic |
| Mating Post Length | 8.51 mm |
| Termination Post Length | 3.2 mm |
Stock: 16707
Distributors
pcbx
pcbxUnit Price$0.16266
Ext.Price$0.16266
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.16266 | $0.16266 |
| 10 | $0.13830 | $1.38300 |
| 50 | $0.12737 | $6.36850 |
| 100 | $0.11731 | $11.73100 |
| 500 | $0.10468 | $52.34000 |
| 1000 | $0.09968 | $99.68000 |
| 3000 | $0.09417 | $282.51000 |
| 5000 | $0.08896 | $444.80000 |
| 10000 | $0.08472 | $847.20000 |
